EAN-26M

Digital Vertical Inclinometer System

$8,000.00 USD*

Sale Sold out

Inclinometer Cable Length:

Quantity:

Remarks/Additional Notes:

Please select the require field

𝐢

For more products or larger orders, please enquire at info@encardio.com or reach out to us.

*All prices are indicative and may be revised; applicable state, local or statutory taxes will be applied at checkout and are payable by the buyer. View full details

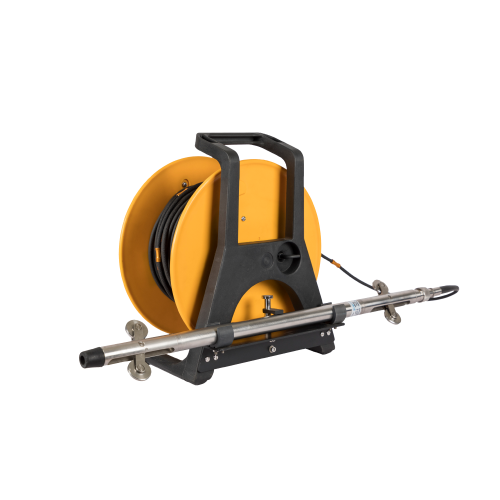

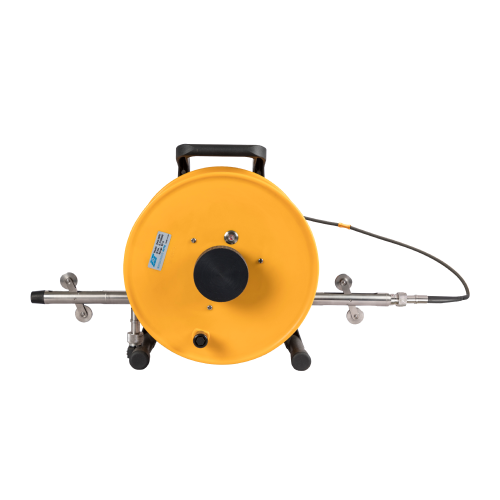

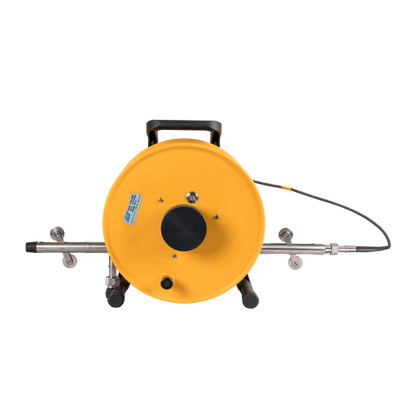

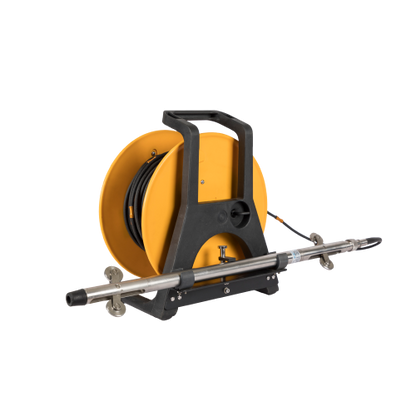

The Encardio Rite EAN-26M Digital Inclinometer provides high-precision measurement of lateral ground movement, making it ideal for monitoring the stability of structures such as dams, tunnels, and retaining walls. Featuring MEMS-based sensors and an Android OS-based mobile phone readout unit, it allows for easy data collection, analysis, and real-time monitoring of displacement. This system is essential for assessing earth movements, detecting shear planes, and ensuring structural safety.

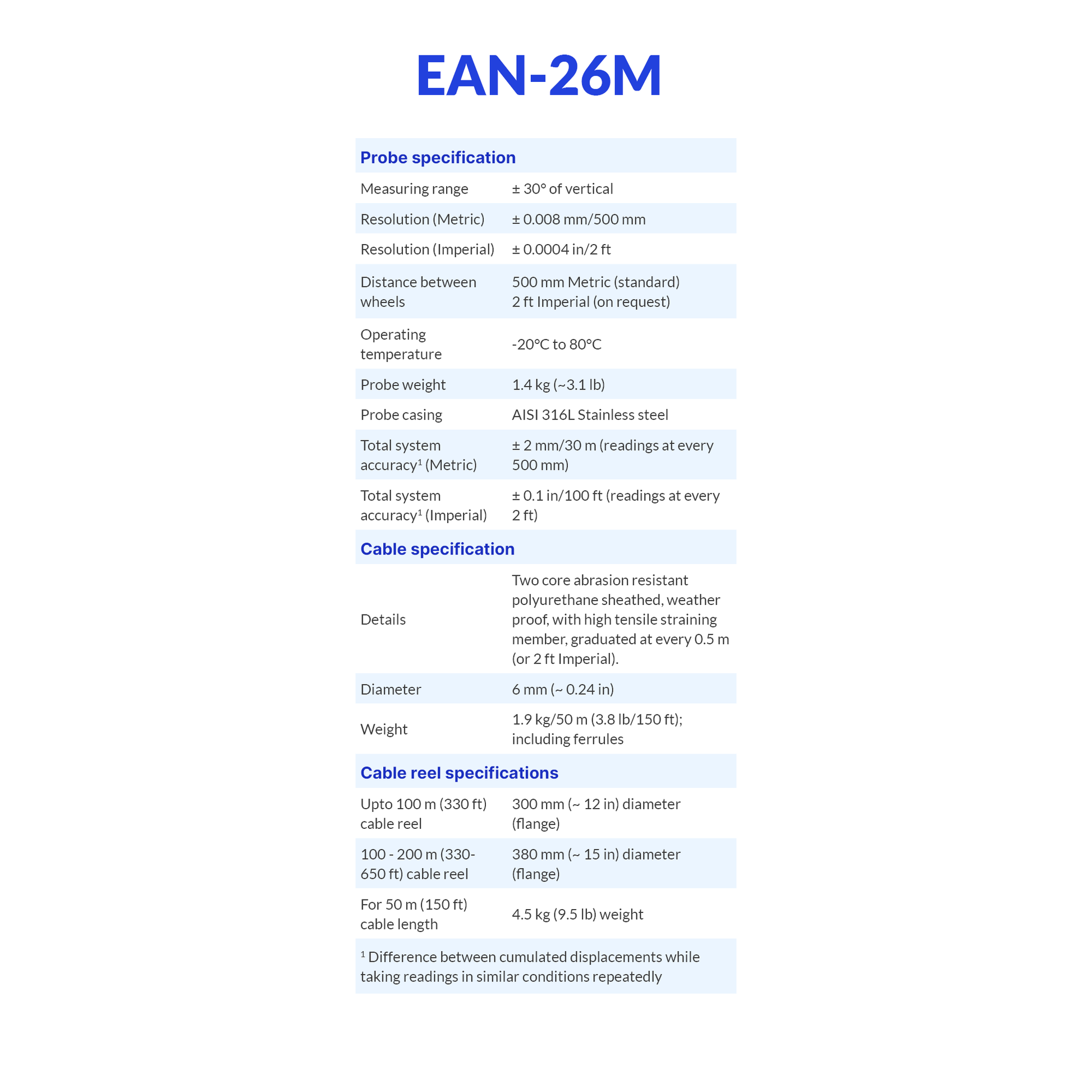

Sensor Type: MEMS Accelerometer, Biaxial

Accuracy: ± 0.1 in/100 ft (readings at every
2 ft)

Range: ± 30° of vertical

Temperature: -20°C to 80°C

Seal: Hermetically sealed under a vacuum of 0.001 Torr

Body: Stainless steel

Resolution: ± 0.0004 in/2 ft

IP-68, water resistant up to its full range.

Hermetically sealed with electron beam welding.

Used in soil, rockfills, concrete for pore pressure monitoring; observation well for water level monitoring.

High-Precision Lateral Movement Monitoring

Track Structural Stability with Digital Accuracy.

Ideal for geotechnical and structural monitoring projects.

Accurate lateral displacement measurement with MEMS technology.

Data visualization and verification via mobile phone app.

Wireless Bluetooth communication for seamless operation.

Know More

Real-Time, Wireless Monitoring of Ground Deformation.

MEMS-Based Digital Tilt Sensing

The EAN-26M features a high-resolution MEMS accelerometer probe that measures tilt angles in two orthogonal planes. With a resolution of ± 0.0004 in/2 ft, it provides accurate displacement data over long distances, even in complex monitoring environments like slopes and embankments.

Know More

User-Friendly Mobile Readout Unit

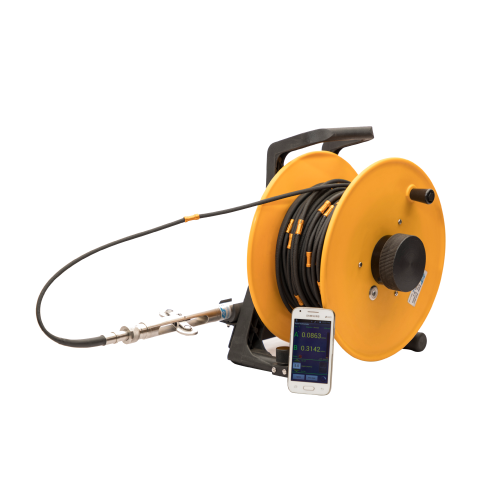

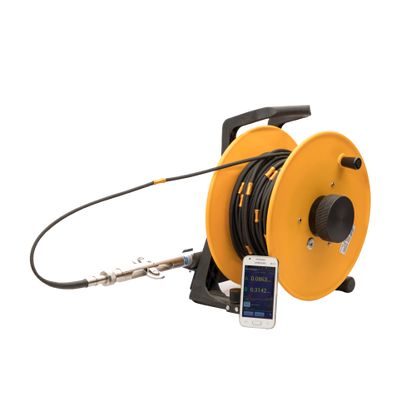

Utilizing an Android-based mobile phone as the readout unit, the EAN-26M allows for quick data collection, viewing, and analysis directly on-site. The app supports real-time data plotting, verification, and export to external devices, making it ideal for field use in geotechnical monitoring projects.

Know More

Easy Integration with Bluetooth

The Bluetooth-enabled system eliminates the need for cumbersome wires, making the EAN-26M simple to set up and operate. Data is transmitted wirelessly to the mobile device, allowing for quick access and troubleshooting during field operations without physical connections.

Know More
