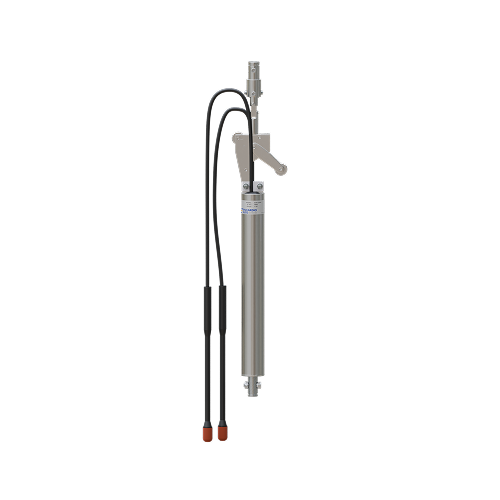

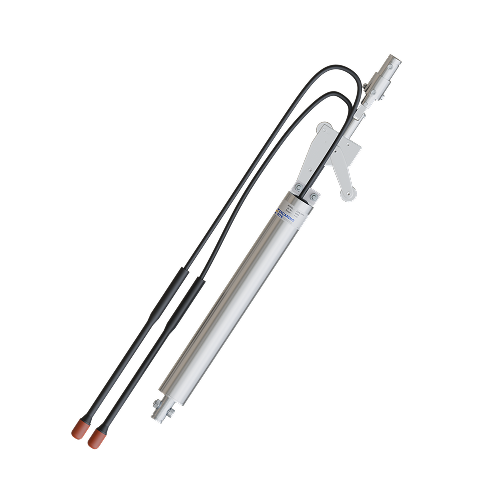

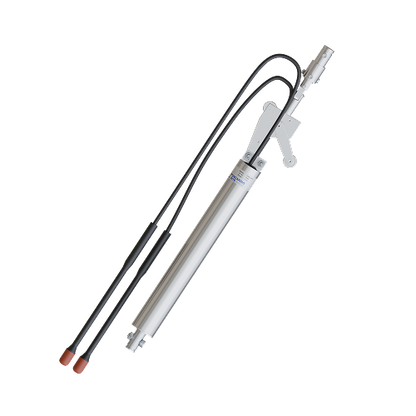

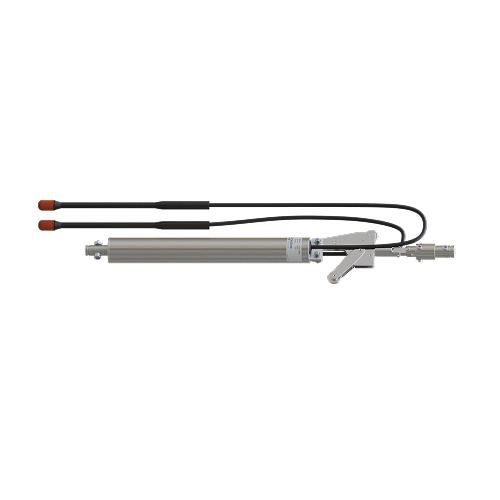

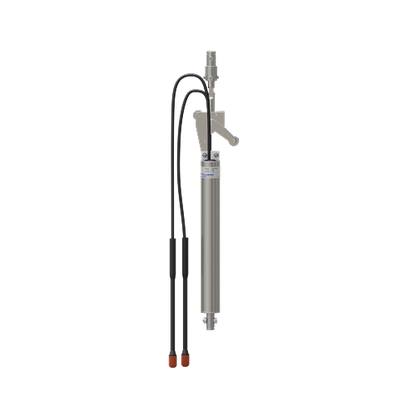

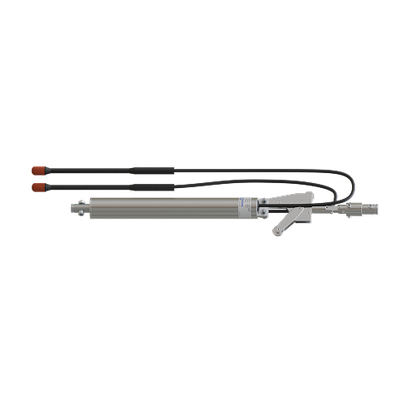

EAN-52M

In-place Inclinometer

In-place Inclinometer

$700.00 USD*
Sale Sold out
  • Spacer Tube Assembly
  • Bottom Wheel Assembly
  • Suspension Kit With Protective Cap
  • Placement Tubing
  • Protective Rope
Please select the require field
𝐢

For more products or larger orders, please enquire at info@encardio.com or reach out to us.

*All prices are indicative and may be revised; applicable state, local or statutory taxes will be applied at checkout and are payable by the buyer. View full details

The Encardio Rite EAN-52M Vertical In-Place Inclinometer with SDI-12 interface and GPS/GSM transmission provides precise monitoring of lateral displacement in geotechnical structures such as dams, embankments, tunnels, and retaining walls. It features high-resolution digital tilt sensors and a robust, modular design, enabling continuous real-time monitoring of ground movement. With its GPS and GSM connectivity, it offers remote data access, ensuring proactive management of structural health.

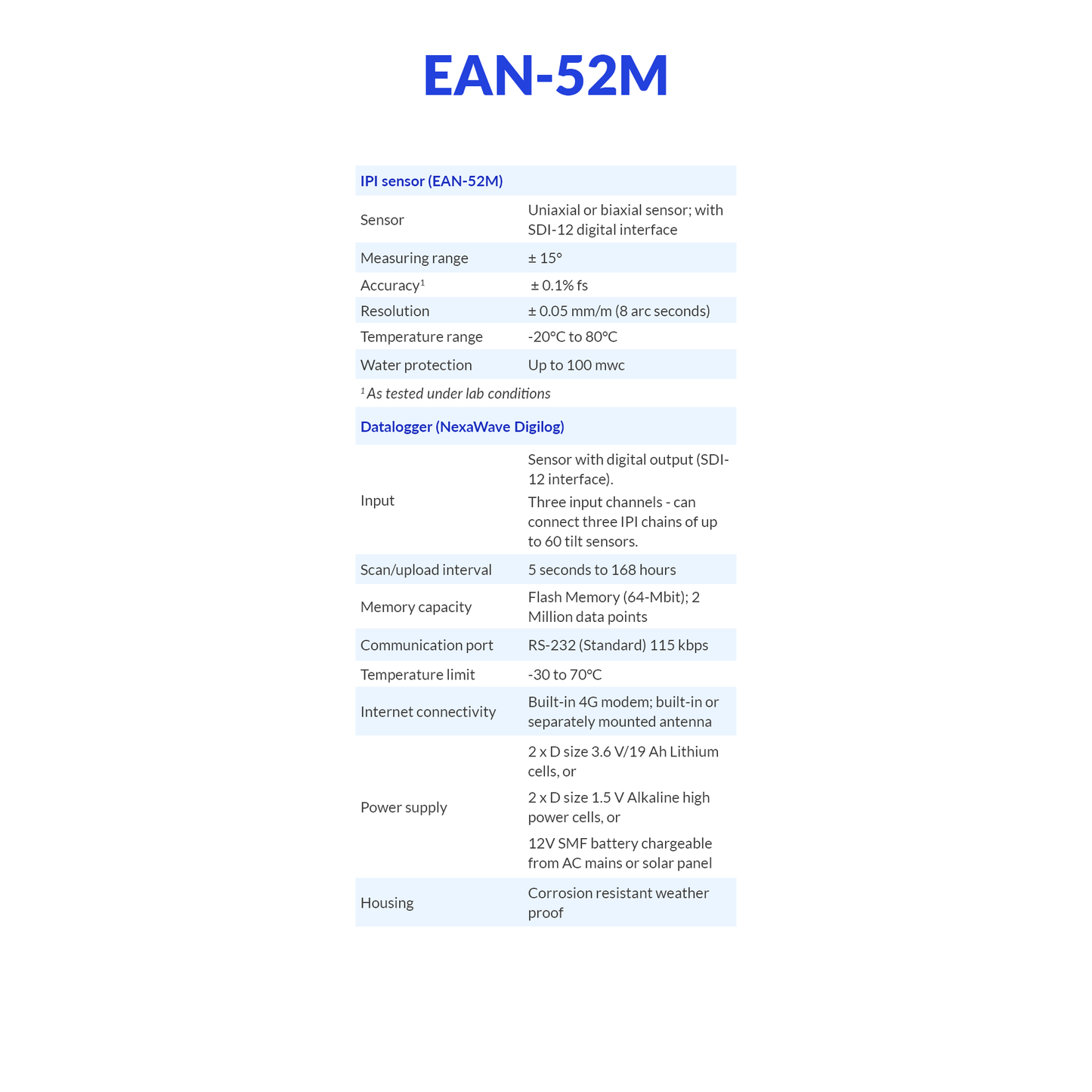

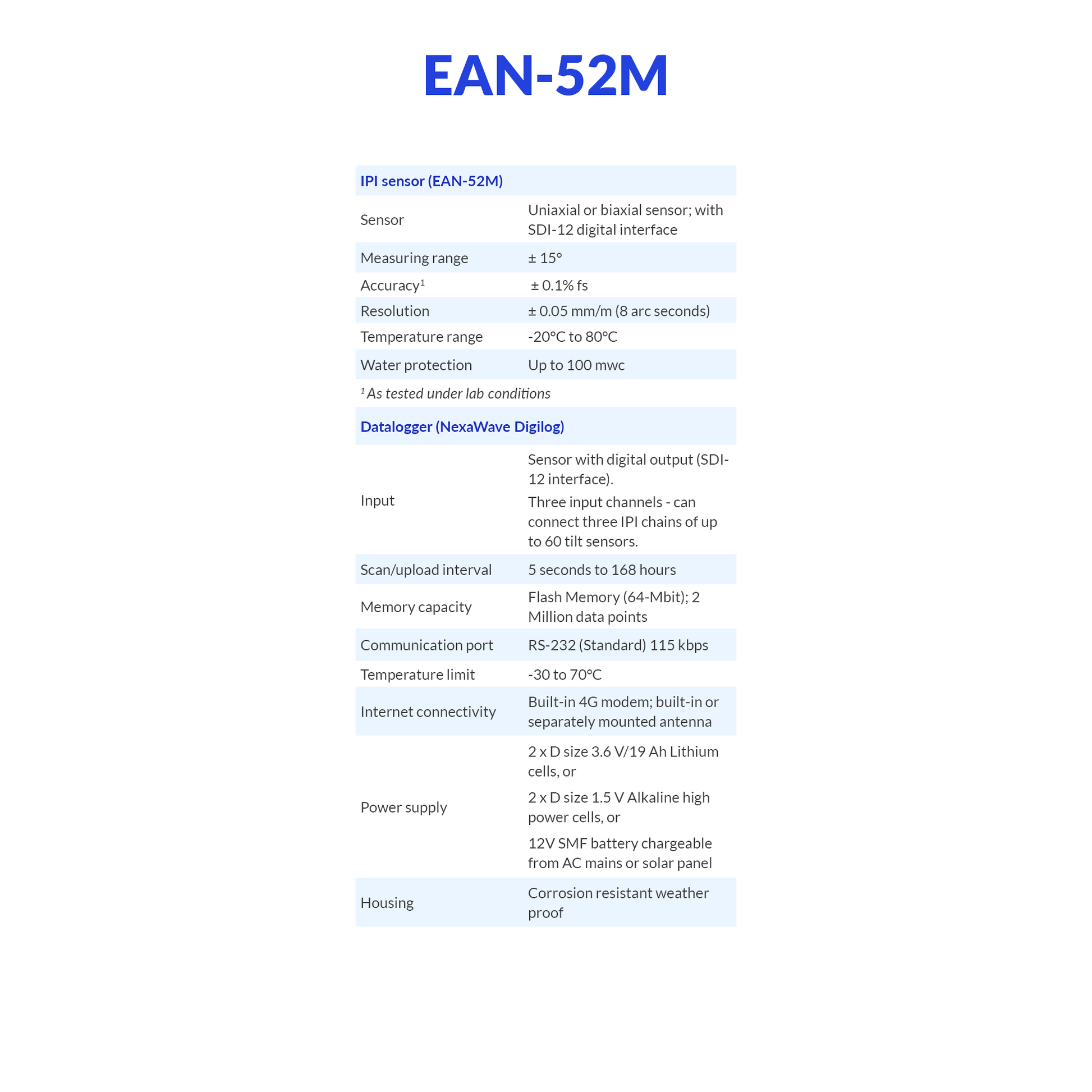

    Sensor Type: MEMS

    Accuracy: ± 0.1% fs

    Range: ± 15°

    Temperature: -20°C to 80°C

    Seal: Hermetically sealed under a vacuum of 0.001 Torr

    Body: Stainless steel

    Output: SDI-12 serial (digital) output

    Protection: Up to 100 mwc

    Resolution: ± 0.05 mm/m (8 arc seconds)

    IP-68, water resistant up to its full range.

    Hermetically sealed with electron beam welding.

    Used in soil, rockfills, concrete for pore pressure monitoring; observation well for water level monitoring.

Digital In-Place Inclinometer with GPS/GSM

Real-Time Ground Movement Monitoring with GPS/GSM Integration.

Advanced system for real-time monitoring of structural displacement.

High-precision uniaxial and biaxial tilt sensors

GPS/GSM data transmission for remote monitoring

Modular, customizable installation options.

Know More
side image

Track Structural Stability with Real-Time, Remote Monitoring.

Icon

Continuous, High-Resolution Monitoring

The EAN-52M uses high-resolution SDI-12 sensors to provide accurate measurements of lateral ground movement. With a resolution of ±0.05 mm/m, it detects even minor shifts in structure stability, helping engineers monitor construction progress and identify potential risks.

Know More
Icon

GPS/GSM for Real-Time, Remote Data Access

Data is transmitted via GPS/GSM, allowing for real-time monitoring from anywhere. This system supports automated data logging and alerts, so engineers can respond immediately to any critical movements or changes, reducing the risk of structural failures.

Know More
Icon

Flexible and Scalable for Complex Applications

The EAN-52M’s modular design supports multiple sensors and flexible installation lengths, making it ideal for diverse geotechnical applications. It can be customized to suit any project, from small-scale monitoring to large infrastructure projects, ensuring comprehensive coverage.

Know More

FAQs

Learn more about the features and use cases for the EAN-52M system.
