EPS-30V-I

Soil-Rock Interface Pressure Cell

Soil-Rock Interface Pressure Cell

$440.00 USD*
Sale Sold out
Length Unit:
Please select the require field
𝐢

For more products or larger orders, please enquire at info@encardio.com or reach out to us.

*All prices are indicative and may be revised; applicable state, local or statutory taxes will be applied at checkout and are payable by the buyer. View full details

The Encardio Rite EPS-30V-I Interface Pressure Cell is designed to measure total contact pressure at the interface of soil and concrete or rock. With a rigid diaphragm and a vibrating wire sensor, it ensures reliable performance even under uneven loads, making it ideal for raft foundations, base slabs, tunnel linings, and critical structural interfaces.

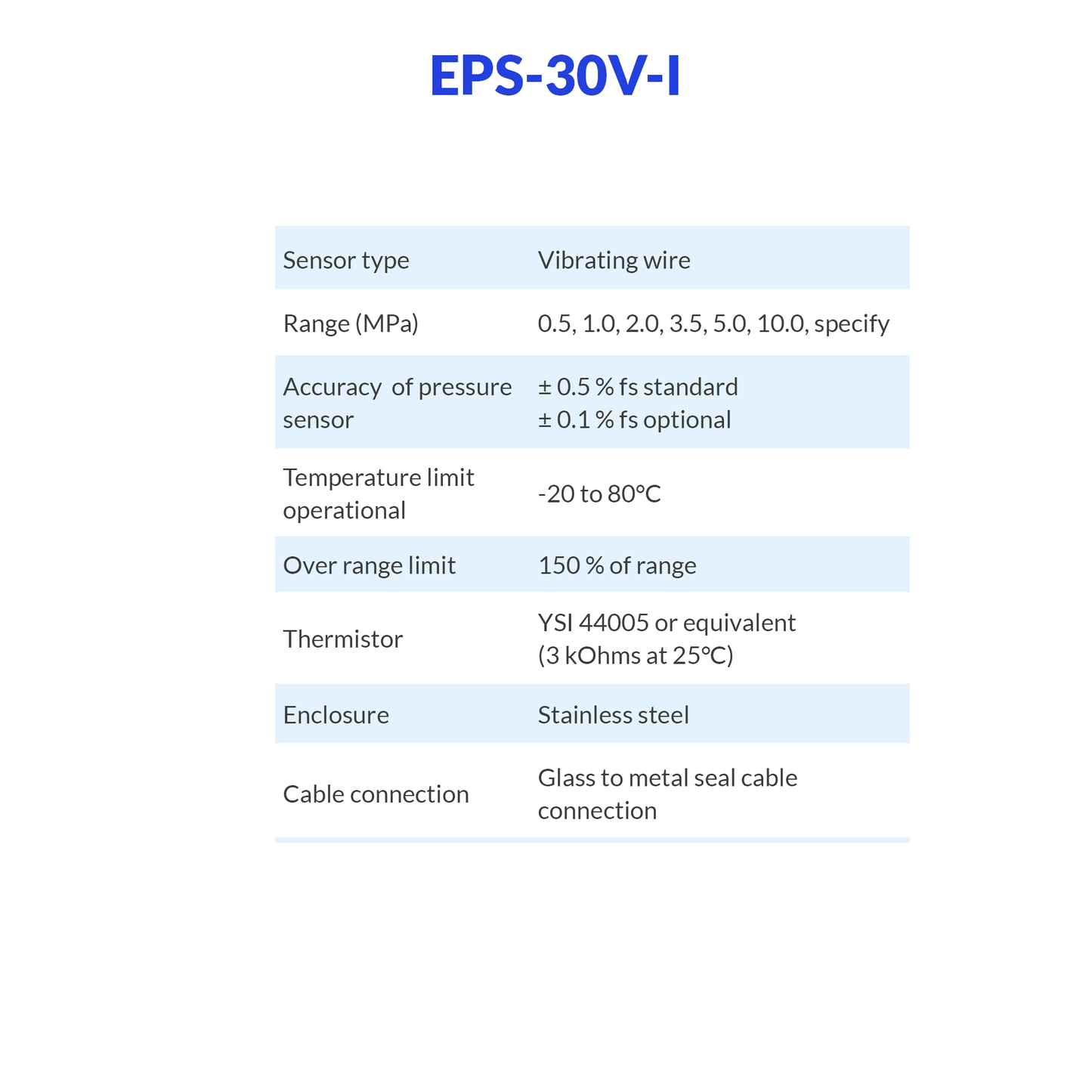

    Sensor Type: Vibrating wire

    Accuracy: ±0.5% fs standard ±0.1% fs optional

    Ranges : 0.5 - 10.0 (specify)

    Temperature : –20°C to 80°C

    Over Range : 150% of range

    Seal:Hermetically sealed under a vacuum of 0.001 Torr

    Body: Stainless steel

    Output : frequency signal

    IP-68, water resistant up to its full range.

    Hermetically sealed with electron beam welding.

    Used in soil, rockfills, concrete for pore pressure monitoring; observation well for water level monitoring.

Soil-Rock Interface Sensor

Reliable Stress Measurement at Interface Zones

Ideal for concrete-soil or rock-soil interface pressure monitoring.

Fluid-filled rigid capsule for accurate load transfer

In-built thermistor for thermal compensation

Compatible with Encardio’s digital loggers & Proqio

Know More
side image

Accurate Contact Stress Detection for Embedded Interfaces

Icon

Engineered for Critical Interface Zones

The EPS-30V-I is built with a rigid stainless-steel diaphragm to eliminate point loading effects at the interface. Its structure enables precise measurement of total pressure between concrete and soil or rock, supporting stability evaluation in high-risk areas like tunnel linings and raft foundations.

Know More
Icon

High Integrity Sensing with Minimal Distortion

With its sealed hydraulic system and vibrating wire sensing element, the pressure cell ensures high sensitivity and fast response. It minimizes volumetric displacement and is ideal for long-term embedded installation across structural interfaces.

Know More
Icon

Seamless Integration and Long-Term Data Capture

Fully compatible with NexaWave data loggers, the EPS-30V-I supports real-time monitoring via GSM, RF, or wired communication. Its digital signal is resistant to noise, enabling extended cable runs and integration with the Proqio data platform for ongoing structural health monitoring.

Know More
