EPS-30V-C

Concrete Pressure Cell

Concrete Pressure Cell

$440.00 USD*
Sale Sold out
Length Unit:
Please select the require field
𝐢

For more products or larger orders, please enquire at info@encardio.com or reach out to us.

*All prices are indicative and may be revised; applicable state, local or statutory taxes will be applied at checkout and are payable by the buyer. View full details

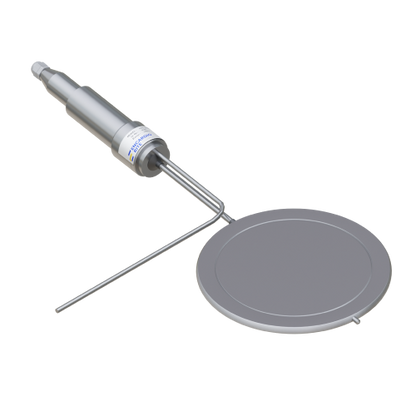

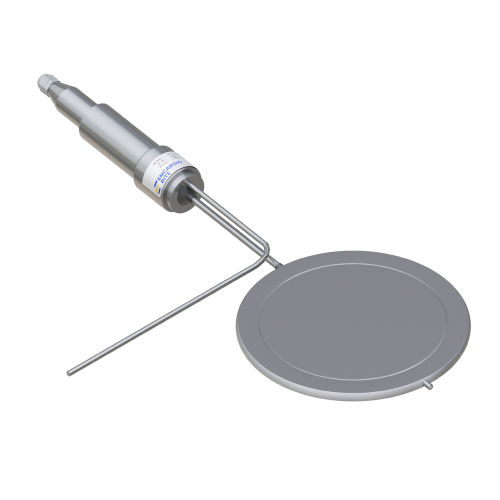

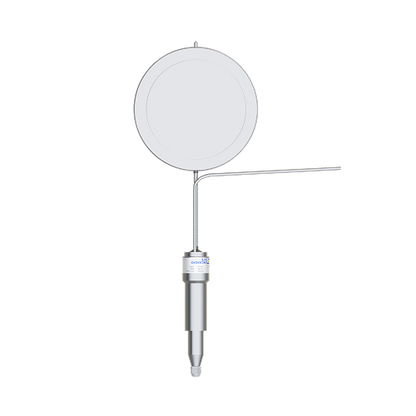

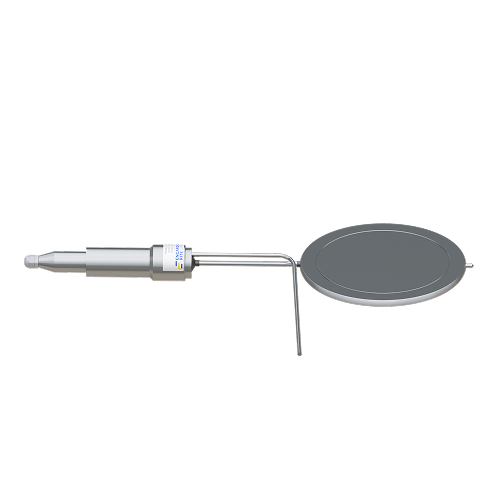

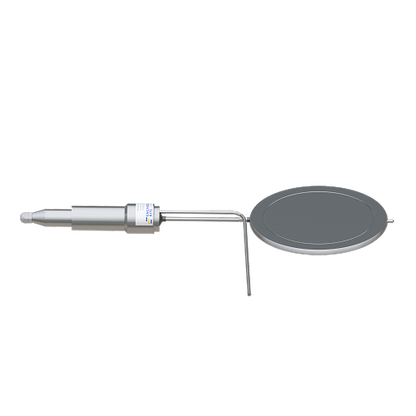

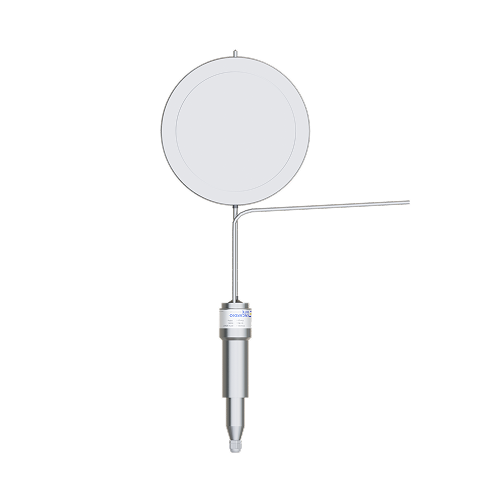

The Encardio Rite EPS‑30V‑C Concrete Pressure Cell accurately measures total pressure in mass or reinforced concrete. Engineered with a high-strength stainless steel diaphragm and fluid-filled chamber, it delivers stable and reliable readings even under long-term load. Ideal for dams, tunnel linings, slabs, and deep foundations requiring embedded stress monitoring.

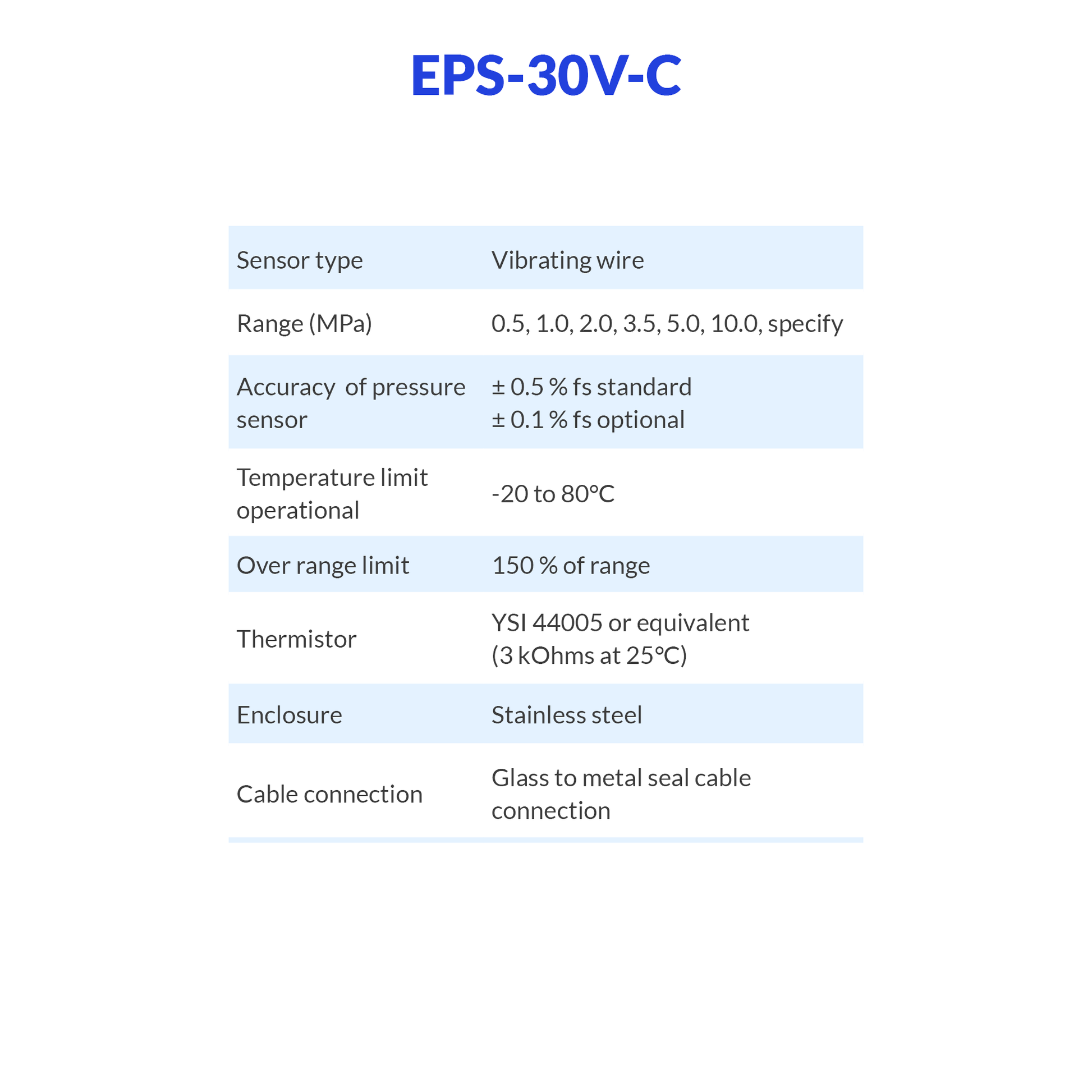

    Sensor Type: Vibrating wire

    Accuracy: ±0.5% fs standard ±0.1% fs optional

    Ranges : 0.5 - 10.0 (specify)

    Temperature : –20°C to 80°C

    Over Range : 150% of range

    Seal:Hermetically sealed under a vacuum of 0.001 Torr

    Body: Stainless steel

    Output : frequency signal

    IP-68, water resistant up to its full range.

    Hermetically sealed with electron beam welding.

    Used in soil, rockfills, concrete for pore pressure monitoring; observation well for water level monitoring.

Concrete Pressure Monitoring

Reliable Pressure Measurement Embedded in Concrete Structures

Built for embedded monitoring in mass concrete under heavy loads.

Stainless steel diaphragm ensures accurate pressure response.

Integrated thermistor provides temperature-compensated output.

Deployed in dams, tunnel linings, and foundation blocks.

Know More
side image

Measure Internal Concrete Stress for Safer Infrastructure

Icon

Rugged Design for Long-Term Monitoring

The EPS‑30V‑C pressure cell is designed with a fully welded stainless steel diaphragm to withstand harsh conditions within concrete. Its robust build ensures minimal drift and reliable readings over time.

Know More
Icon

Vibrating Wire Output for High Signal Integrity

With vibrating wire sensing, the EPS‑30V‑C provides interference-free, long-distance signal transmission—ideal for complex infrastructure sites. Readings remain stable even with long cable lengths or challenging environments.

Know More
Icon

Seamless Integration into Civil Engineering Projects

The cell can be embedded directly into fresh concrete or mounted in formwork before casting. It is suited for high-load zones in dams, retaining structures, and thick slabs, where structural stress matters most.

Know More
