High Capacity Center Hole Load Cell

$850.00 USD*

Sale Sold out

Range :

Quantity:

Cable Type: (Optional)

Total Cable Length

Length Unit:

Remarks/Additional Notes:

Please select the require field

𝐢

For more products or larger orders, please enquire at info@encardio.com or reach out to us.

*All prices are indicative and may be revised; applicable state, local or statutory taxes will be applied at checkout and are payable by the buyer. View full details

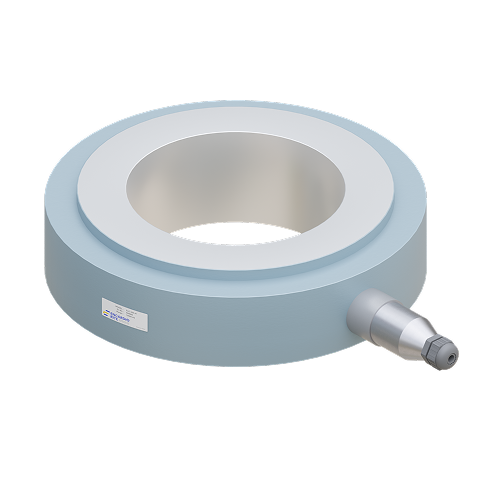

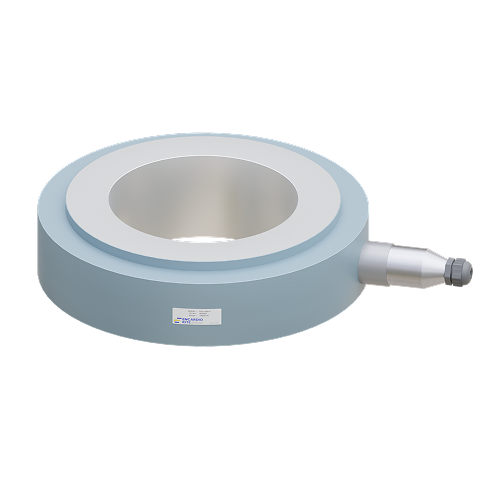

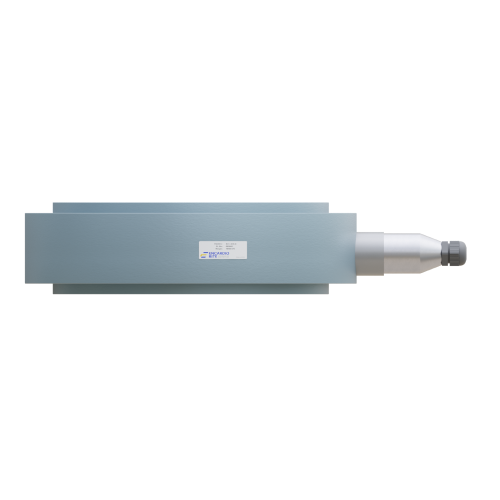

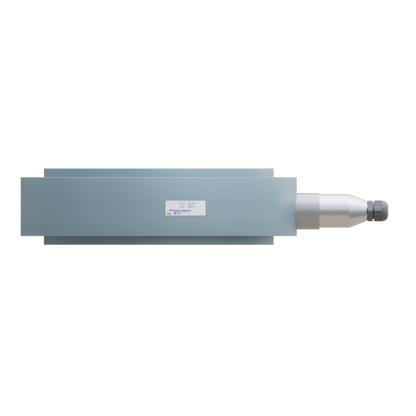

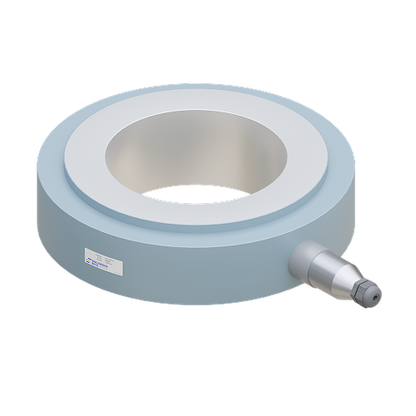

The ELC-30S-H is a high-capacity center hole load cell designed for accurate tensile or compressive force measurement in civil structures. Ideal for large-scale load monitoring in ground anchors, tiebacks, tunnel supports, and beam-pile interfaces, it is engineered for performance in demanding environments.

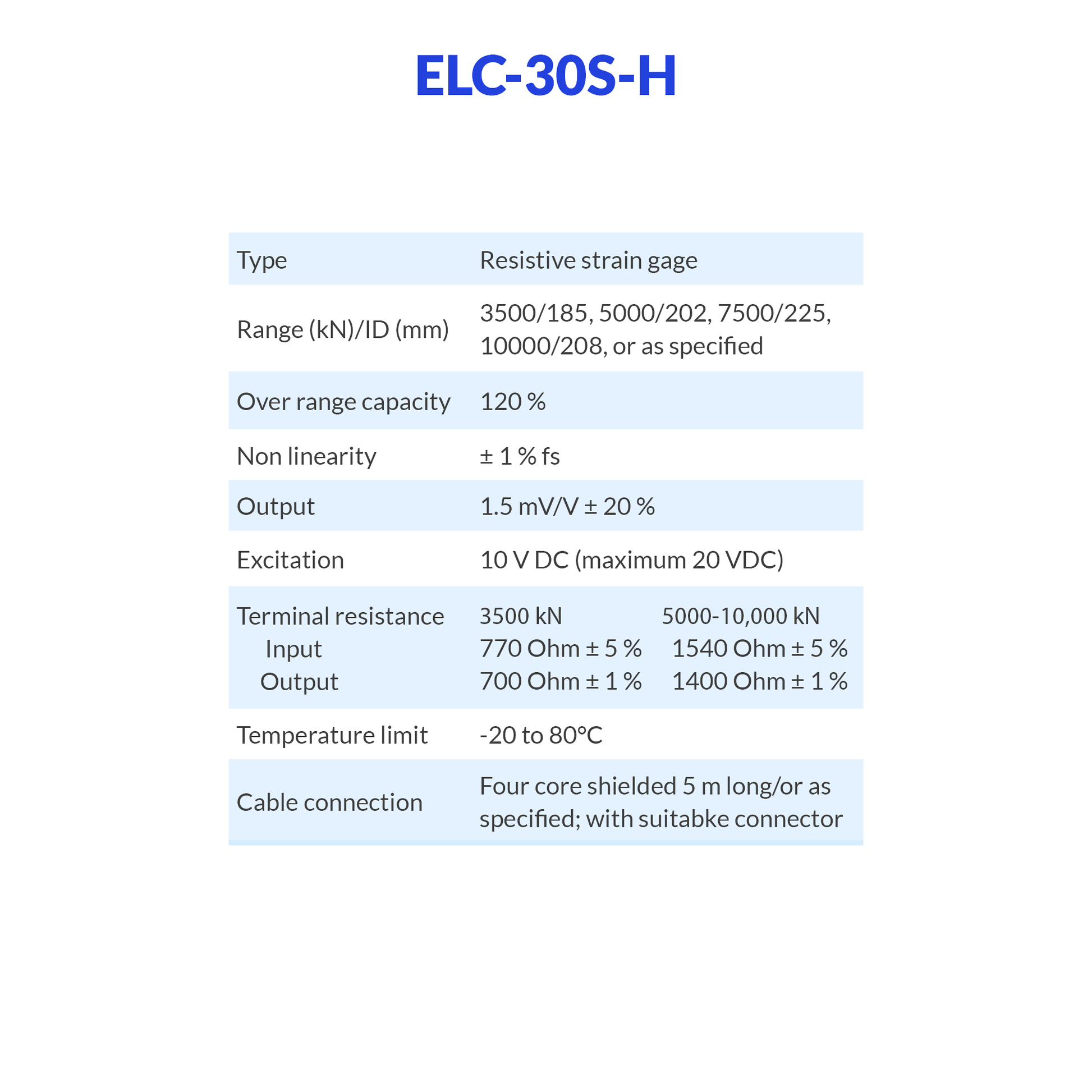

Sensor Type: Resistive strain gage

Ranges : 3500/185, 5000/202, 7500/225, 10000/208, or as specified

Temperature : –20°C to 80°C

Over Range : 120% of range

Seal:Hermetically sealed under a vacuum of 0.001 Torr

Body: Stainless steel

Output : 1.5 mV/V ± 20 %

IP-68, water resistant up to its full range.

Hermetically sealed with electron beam welding.

Used in soil, rockfills, concrete for pore pressure monitoring; observation well for water level monitoring.
